TRANSMITTER - אבי יפה

מידות

גובה: 11 ס״מ
רוחב: 3 ס״מ
עומק: 10.4 ס״מ

TRANSMITTER

The wireless Transmitter for Gravis III, V & VI subwoofers

Designed by Sonus faber to transmit the signal in wireless mode to Gravis III, V & VI subwoofers, with maximum versatility and discretion.

FEATURES

PAIRING

To use during the installation procedure. Hold down – usually for approx. 5 seconds – until the LED starts to flash. When this occurs, press – within maximum 30 seconds – the corresponding pairing button on the subwoofer panel with integrated receiver. The radio contact will be established when the LEDs stop flashing and become fixed. The LED switches off a few moments later, once the connection is activated.

LED

If fixed light, it indicates that the unit is powered and paired with the receiver. The LED flashes during the pairing procedure or if the radio connection is not yet established.

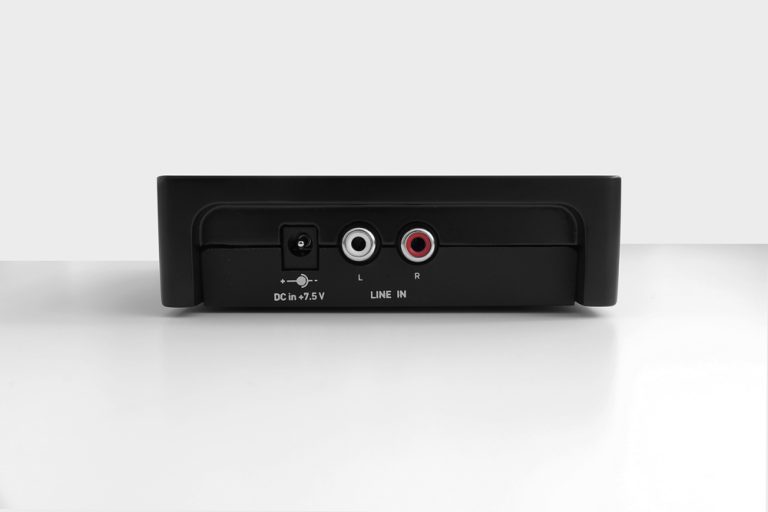

LINE INPUTS

The use of an RCA cable (mono or stereo) allows the Transmitter to be connected to the line output of a stereo amplifier, an audio-video player (DVD, Blu-ray, etc.) or a home theatre controller /pre-amplifier, etc.
